专为狭小空间设计，精准瞄准工件清除灰尘与污染物，同步高效消除静电。配备丰富喷嘴种类，适配多场景清洁需求。采用高频 AC 技术，离子平衡稳定性极强，不受供给气压、安装距离影响，安装后无需繁琐调试，大幅提升作业效率。适用于电子元件、精密仪器等静电敏感场景，高效解决静电吸附粉尘难题，助力精密制造洁净生产。
- 性能
- ❯ 极其稳定的离子平衡
- ❯ 可以轻松组装到设备内部
- ❯ 可根据应用选择不同类型
- ❯ 离子针头可轻松拆卸和清洁
- ❯ 通过 lO 通信实现连接自动化
- ❯ 24V直流电源，无需高压电缆
- ❯ 实时显示运行状态和离子异常
- 主要特点
- ❯ 高频交流电离技术
- ❯ 超紧凑设计
- ❯ 喷嘴种类繁多
- ❯ 易于维护
- ❯ 信号输入/输出功能
- ❯ 令人放心的安全设计
- ❯ 运行状态指示灯
 |

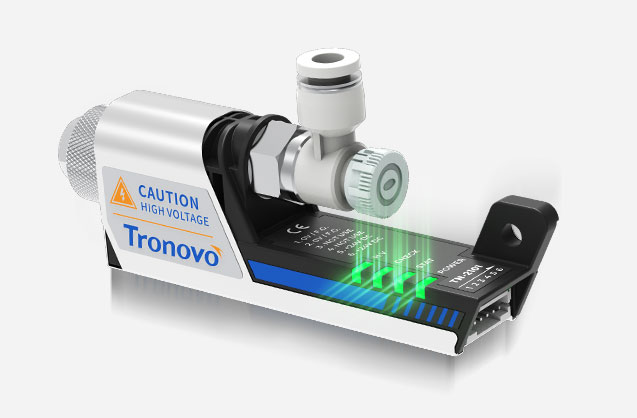

LED指示灯直观显示工作状态 内置 “检查功能”，自动提示离子针清洁需求。各项功能状态均通过 LED 实时确认，支持功能输出信号，便于从外部监控设备运行状态，实现高效运维，适配精密电子、仪器制造等场景，提升静电管控可靠性。 |

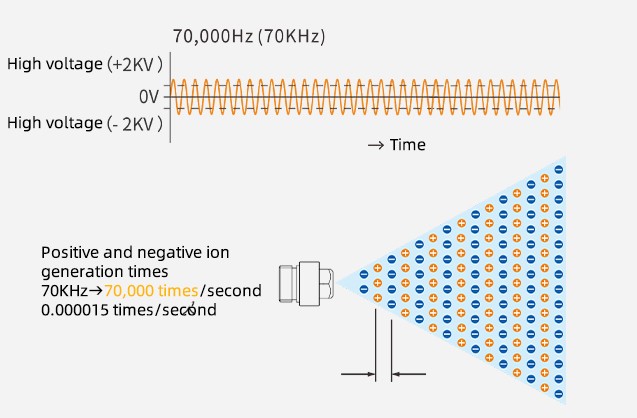

高频AC电离技术 静电消除器：采用低压 2200V 设计，离子产生频率达 70000 次/秒，实现高水平静电消除，消电速度快。离子平衡极其稳定，无需调节，支持管道输送离子，可近距离使用，安全性高，适配精密电子、仪器制造等场景，高效解决静电难题。 |
 |
 |

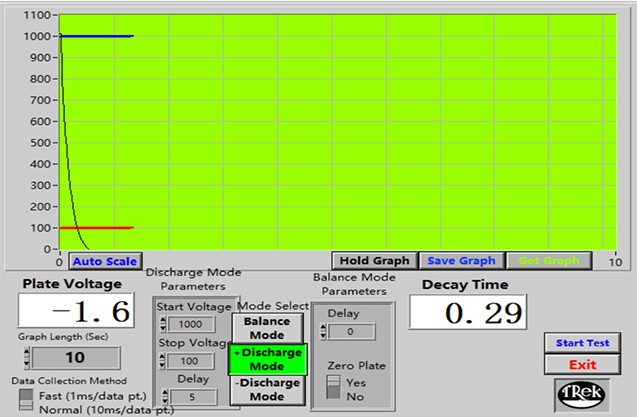

正消散时间测量图清晰展示静电消除速度 记录设备将+1000V高电压带电物体消电至安全低电位+100V所需时间。此关键指标直观量化消电性能，时间越短，静电消除效率越高。 |

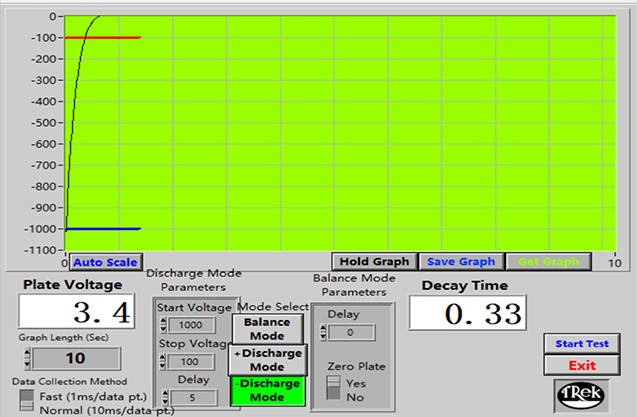

负消散时间测量图: 核心呈现静电消除效能 — 记录带有 - 1000V 静电的带电物体，电荷衰减至 - 100V 的耗时。精准反映静电消除器的负电荷中和速度，为电子元件、精密仪器等场景的静电管控提供关键数据支撑，助力优化防静电方案。 |
 |
 |

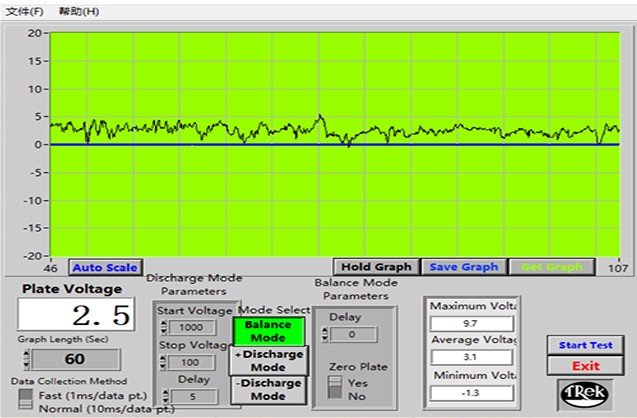

稳定的离子平衡 稳定的离子平衡是静电消除器的核心性能。它指在连续释放正负离子照射下，目标物体表面静电压的大小。离子平衡度越高，残余电压越低，消电效果越精准可靠。优异的离子平衡无需繁琐调节，显著提升精密制程中的静电消除精度和良率。 |
| MODEL NUMBER | Body style | Nozzle Accessories | Material | ILLUSTRATE |
| Diffusion nozzles |

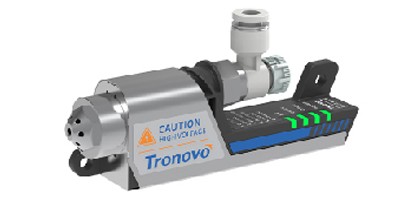

MODEL:DN251-SN01 |  MODEL:TN-SN01 | SUS 304 | Straight lines diffuse the air |
| Shower-type nozzles |
MODEL:DN251-SN02 |  MODEL:TN-SN02 | SUS 304 | 45 degree spray angle for wider air diffusion |

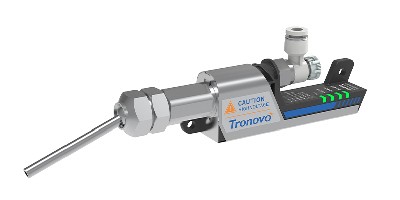

| Connected hose nozzles |

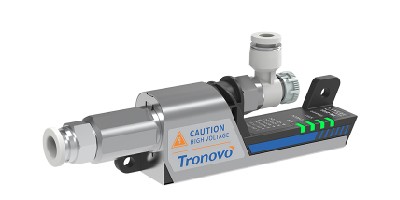

MODEL:DN251-SN03 |  MODEL:TN-SN03 | Metal | Ion nozzle body and conduit connection nozzle can be connected to any bend of the conductive conduit conduit diameter ø 6mm, the minimum bending radius: R25mm, need to purchase additional TN-SN10 adapter to use. |

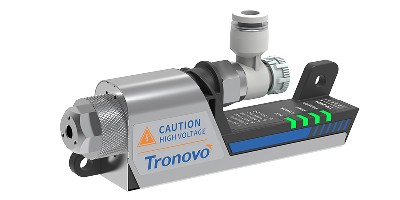

| Adjustable point nozzle |
MODEL:DN251-SN04 |  MODEL:TN-SN04 | SUS 304 | Can be in the range of 60 degrees, arbitrary adjustment of the spray angle to use first adjust the nozzle after the fixed nut, need to purchase additional TN-SN10 adapter to use! |

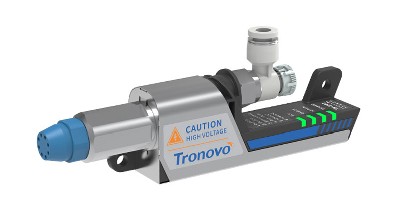

| Round-nosed nozzles |
MODEL:DN251-SN05 |  MODEL:TN-SN05 | Plastics | Powerful straight-line air can be injected from a small hole at the front end, with the addition of the TN-SN10 adapter. |
| Flat-head nozzles |

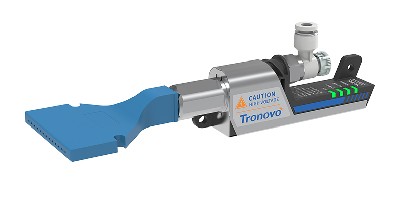

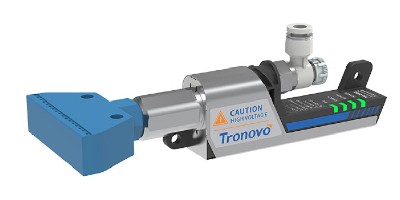

MODEL:DN251-SN06 |  MODEL:TN-SN06 | Plastics | Wide range of uniform electrostatic dust removal, requires additional TN-SN10 adapter for use |
| 90-degree nozzle |
MODEL:DN251-SN07 |  MODEL:TN-SN07 | Plastics | The angle of the air jet is perpendicular to the threaded surface, making it ideal for space-constrained locations，Requires additional TN-SN10 adapter to use |

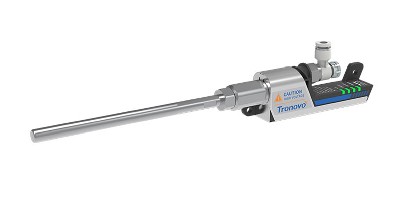

| Stick type side blow nozzle |
MODEL:DN251-SN08 |  MODEL:TN-SN08 | SUS 304 | De-static effective length 270mm can improve the de-static area suitable for space-restricted places, need to add the purchase of TN-SN10 adapter use |
| Rod type side blow nozzle + bendable hose |

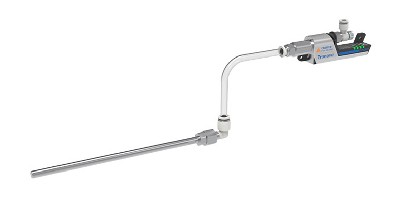

MODEL:DN251-SN09 |  MODEL:TN-SN09 | SUS 304 | De-static effective length of 270mm, the rod-type side blowing nozzle edge to the conductive conduit conduit diameter ø 6mm, the minimum bending radius: R25mm, the length of the conduit has a greater impact on the time to remove static electricity, please follow the site to do the choice of the appropriate, need to add the purchase of the TN-SN10 adapter to use! |
| Nozzle adapters |
|  MODEL:TN-SN10 | SUS 304 | RP1/4 (female) to M16×1.5 (male) is suitable between the nozzle and the thread of the static eliminator. |

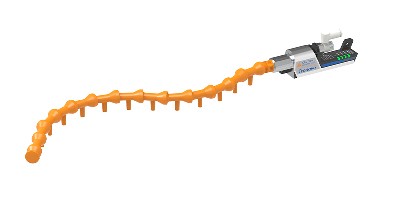

| Bamboo gimbal nozzle |
MODEL:DN251-SN19 |  MODEL:TN-SN19 | Shuo material | It can be installed on DN251 or DN252, the default length of the product is 40cm, and there are 13 nozzles in total. Customers can shorten or extend as needed. |
| Universal nozzle |
MODEL:DN251-SN20 |  MODEL:TN-SN20 | Metal | The nozzle can be bent arbitrarily and does not need to be fixed Keep the curved shape unchanged, using a flower wine nozzle Can increase the elimination area |
| Rotate the fixing bracket | |  MODEL:TN-RB01 | SUS 304 | The ionic nozzle body is fixed and installed |
